  • INGERSOLL 5W6H-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.625 OAL

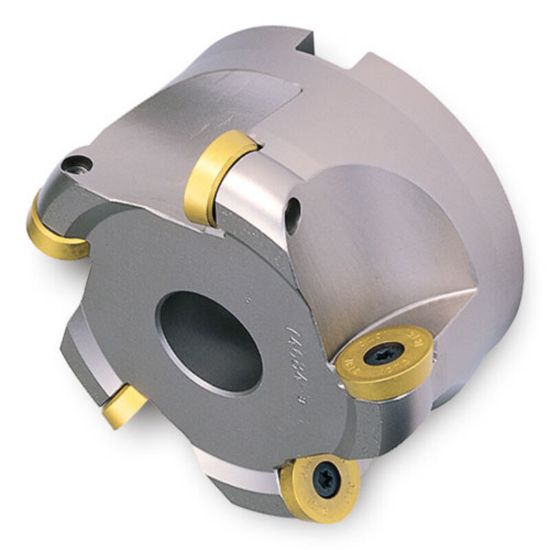

Picture of INGERSOLL 5W6H-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.625 OAL

INGERSOLL 5W6H-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.625 OAL

ANSI: 5W6H-20R01

ISO: 5W6H-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3005666
Delivery date: 3-5 days
$558.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2500
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.6250 41.28MM
Cutting & Machining Properties
Insert Style RP
Max Ramp Angle 5.00°
Insert Shape/Cutter Pocket Shape Round
Coolant Thru No
