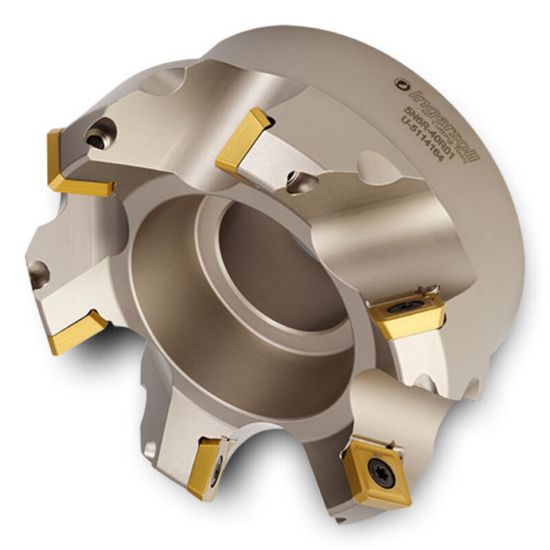

Picture of INGERSOLL 5N6R-40R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 6 Flute 0.41 Max DOC 2.375 OAL

INGERSOLL 5N6R-40R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 6 Flute 0.41 Max DOC 2.375 OAL

ANSI: 5N6R-40R01

ISO: 5N6R-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017426
Delivery date: 3-5 days
$833.47

Details

FACE MILL WITH VERY POSITIVE CUTTING ACTION. GREAT FOR ROUGHING WITH IT LARGE IC INSERT.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Medium
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Application Face Milling
Dimensional Specifications
Depth Of Cut Max 0.4100
Cut Dia Max 4.7300 120.14MM
Overall Len 2.3750 60.33MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 6
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
