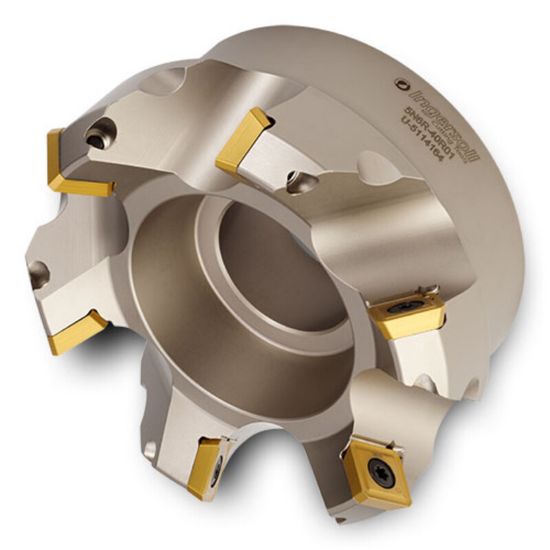

Picture of INGERSOLL 5N6R-30R01 Milling Cutter 45.0° 3.000 Shell Arbor 1.0000 5 Flute 0.41 Max DOC 1.750 OAL

INGERSOLL 5N6R-30R01 Milling Cutter 45.0° 3.000 Shell Arbor 1.0000 5 Flute 0.41 Max DOC 1.750 OAL

ANSI: 5N6R-30R01

ISO: 5N6R-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017425
Delivery date: 3-5 days
$615.07

Details

FACE MILL WITH VERY POSITIVE CUTTING ACTION. GREAT FOR ROUGHING WITH IT LARGE IC INSERT.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Medium
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Dimensional Specifications
Cut Dia Max 3.7300 94.74MM
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.4100
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Insert Size Ic 15
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru No
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
