  • INGERSOLL 5N6L-40R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.46 Max DOC 2.380 OAL

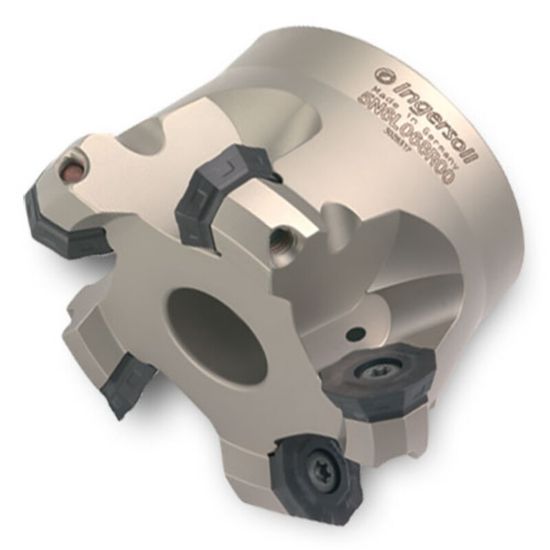

Picture of INGERSOLL 5N6L-40R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.46 Max DOC 2.380 OAL

INGERSOLL 5N6L-40R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.46 Max DOC 2.380 OAL

ANSI: 5N6L-40R01

ISO: 5N6L-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028026
Delivery date: 3-5 days
$845.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Insert Application Medium
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 4.4800 113.79MM
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 7
Overall Len 2.3800 60.45MM
Flutes/Inserts 6
Cutter Dia 4.0000 101.60MM
Depth Of Cut Max 0.4600
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Insert Style OF
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Octagonal
