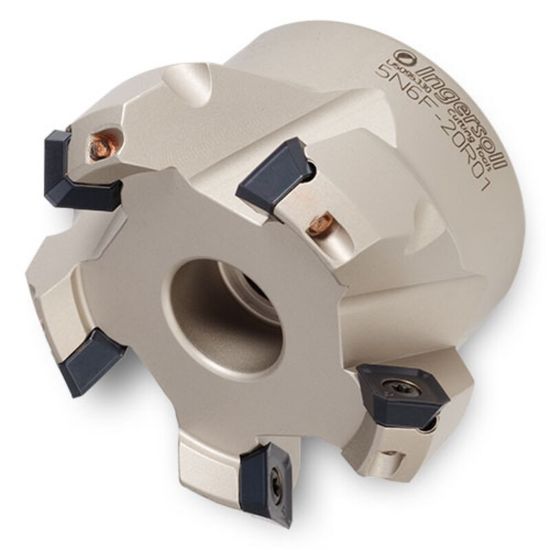

Picture of INGERSOLL 5N6F-30R01 Milling Cutter 45.0° 3.400 Shell Arbor 1.0000 7 Flute 0.18 Max DOC 2.000 OAL

INGERSOLL 5N6F-30R01 Milling Cutter 45.0° 3.400 Shell Arbor 1.0000 7 Flute 0.18 Max DOC 2.000 OAL

ANSI: 5N6F-30R01

ISO: 5N6F-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040584
Delivery date: 3-5 days
$674.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Chamfering
Insert Application Medium
Package Size 1
Dimensional Specifications
Insert Size Ic 9
Flutes/Inserts 7
Cutter Dia 3.4000 86.36MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Cut Dia Max 3.4000 86.36MM
Depth Of Cut Max 0.1800
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Insert Style SE
