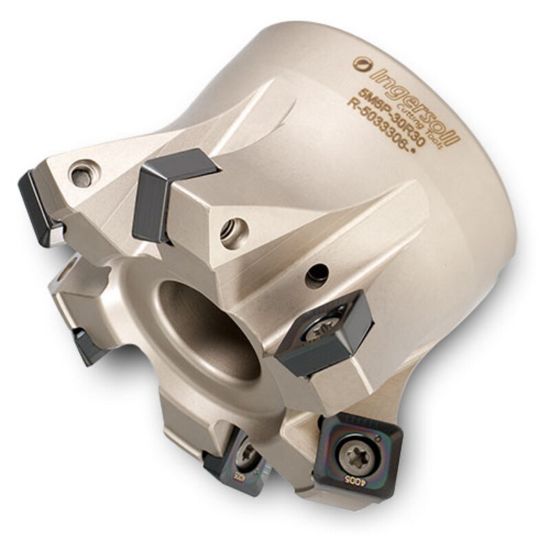

Picture of INGERSOLL 5M6P-30R30 Milling Cutter 3.000 Shell Arbor 1.0000 6 Flute Coolant 0.2 Max DOC 2.000 OAL

INGERSOLL 5M6P-30R30 Milling Cutter 3.000 Shell Arbor 1.0000 6 Flute Coolant 0.2 Max DOC 2.000 OAL

ANSI: 5M6P-30R30

ISO: 5M6P-30R30

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2905911
Delivery date: 3-5 days
$733.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Package Size 1
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2000
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Cut Dia Min 2.2170 56.31MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.80°
Insert Shape/Cutter Pocket Shape Square
