  • INGERSOLL 5M5P-30R02 Milling Cutter 3.000 Shell Arbor 1.2500 8 Flute Coolant 0.088 Max DOC 2.000 OAL

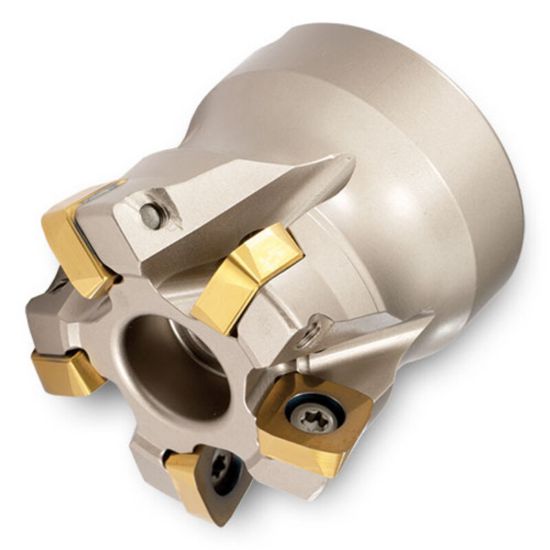

Picture of INGERSOLL 5M5P-30R02 Milling Cutter 3.000 Shell Arbor 1.2500 8 Flute Coolant 0.088 Max DOC 2.000 OAL

INGERSOLL 5M5P-30R02 Milling Cutter 3.000 Shell Arbor 1.2500 8 Flute Coolant 0.088 Max DOC 2.000 OAL

ANSI: 5M5P-30R02

ISO: 5M5P-30R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2900618
Delivery date: 3-5 days
$851.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Overall Len 2.0000 50.80MM
Tool Material Steel
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Cut Dia Min 2.1700 55.12MM
Depth Of Cut Max 0.0880
Flutes/Inserts 8
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 0.80°
