  • INGERSOLL 5J5P-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 10 Flute Coolant 0.45 Max DOC 2.375 OAL

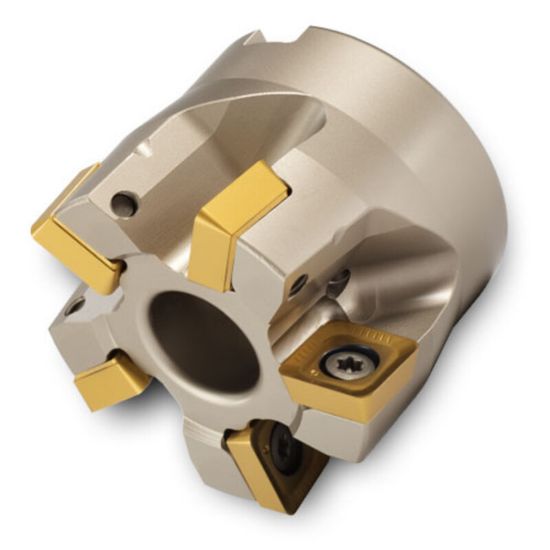

Picture of INGERSOLL 5J5P-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 10 Flute Coolant 0.45 Max DOC 2.375 OAL

INGERSOLL 5J5P-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 10 Flute Coolant 0.45 Max DOC 2.375 OAL

ANSI: 5J5P-40R01

ISO: 5J5P-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2912697
Delivery date: 3-5 days
$1,073.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Feed Milling, Copy Milling, Face Milling, Slot Milling
Package Size 1
Insert Application Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 13
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 10
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Depth Of Cut Max 0.4500
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
Max Ramp Angle 1.00°
Coolant Thru Yes
