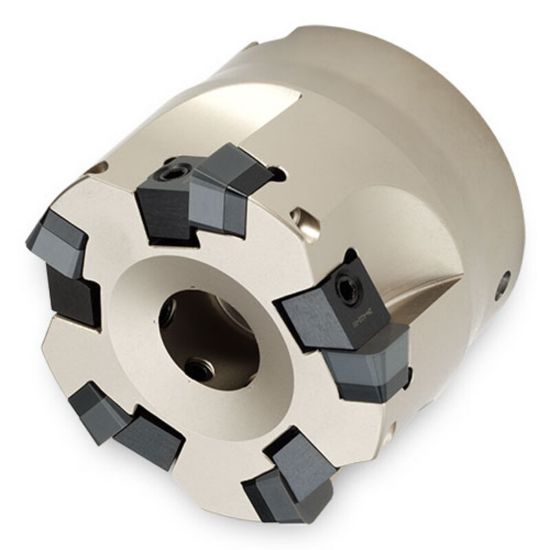

Picture of INGERSOLL 5J2H-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute 0.24 Max DOC 2.380 OAL

INGERSOLL 5J2H-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute 0.24 Max DOC 2.380 OAL

ANSI: 5J2H-40R01

ISO: 5J2H-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3016737
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Insert Application Finishing, Medium
Insert Type Positive
Package Size 1
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Depth Of Cut Max 0.2400
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Overall Len 2.3800 60.45MM
Flutes/Inserts 6
Cutting & Machining Properties
Insert Style OP,SP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
