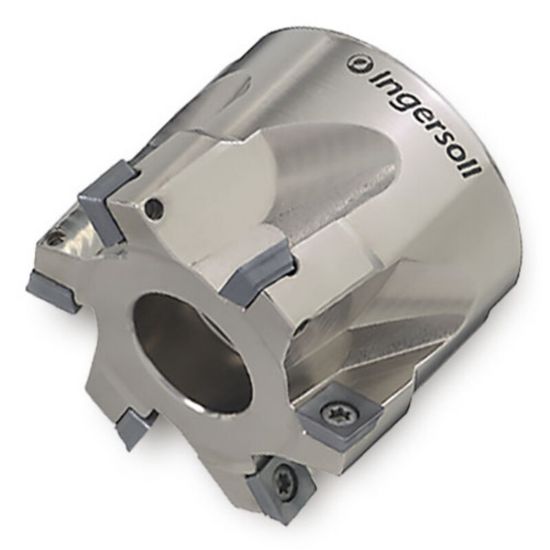

Picture of INGERSOLL 5J1E-15R01 Milling Cutter 90.0° 1.500 Shell Arbor 0.5000 5 Flute 0.31 Max DOC 1.570 OAL

INGERSOLL 5J1E-15R01 Milling Cutter 90.0° 1.500 Shell Arbor 0.5000 5 Flute 0.31 Max DOC 1.570 OAL

ANSI: 5J1E-15R01

ISO: 5J1E-15R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012739
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Insert Application Roughing, Medium, Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.3100
Cutter Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 8
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Max Ramp Angle 1.50°
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Insert Style SD
