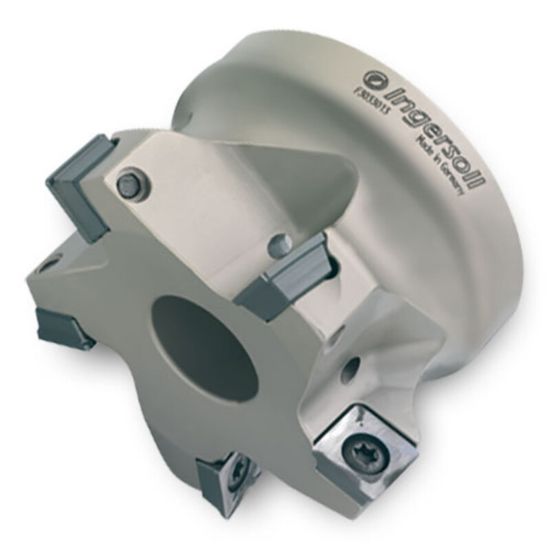

Picture of INGERSOLL 5H6G-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 9 Flute 0.41 Max DOC 2.375 OAL

INGERSOLL 5H6G-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 9 Flute 0.41 Max DOC 2.375 OAL

ANSI: 5H6G-40R01

ISO: 5H6G-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3022722
Delivery date: 3-5 days
$942.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Medium, Roughing, Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4100
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Flutes/Inserts 9
Insert Size Ic 11
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Style SH
Coolant Thru No
Max Ramp Angle 0.50°
Insert Shape/Cutter Pocket Shape Square
