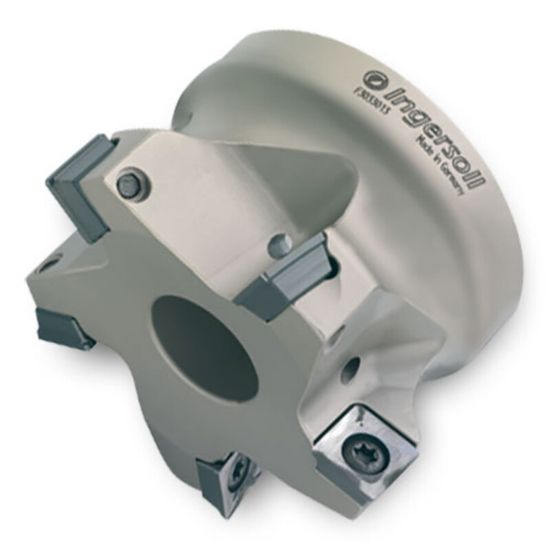

Picture of INGERSOLL 5H6G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 8 Flute 0.41 Max DOC 1.750 OAL

INGERSOLL 5H6G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 8 Flute 0.41 Max DOC 1.750 OAL

ANSI: 5H6G-30R01

ISO: 5H6G-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3022721
Delivery date: 3-5 days
$770.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Medium, Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Pocket Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.4100
Overall Len 1.7500 44.45MM
Flutes/Inserts 8
Insert Size Ic 11
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Max Ramp Angle 0.50°
Insert Shape/Cutter Pocket Shape Square
Insert Style SH
Coolant Thru No
