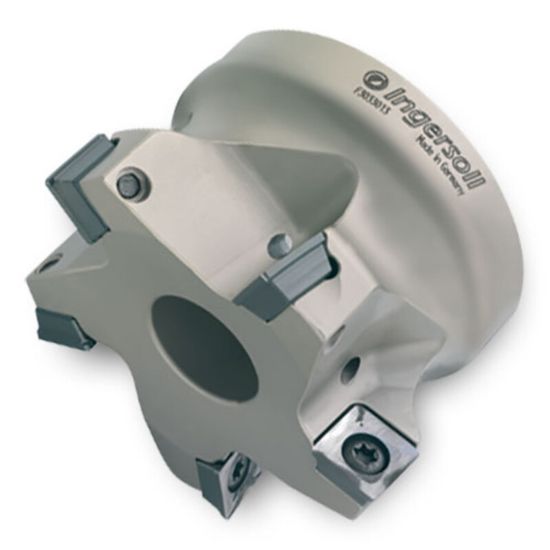

Picture of INGERSOLL 5H6G-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 4 Flute 0.41 Max DOC 1.750 OAL

INGERSOLL 5H6G-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 4 Flute 0.41 Max DOC 1.750 OAL

ANSI: 5H6G-25R01

ISO: 5H6G-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3023878
Delivery date: 3-5 days
$588.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Application Finishing, Medium, Roughing
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.4100
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Insert Size Ic 11
Overall Len 1.7500 44.45MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 1.00°
Insert Style SH
Coolant Thru No
