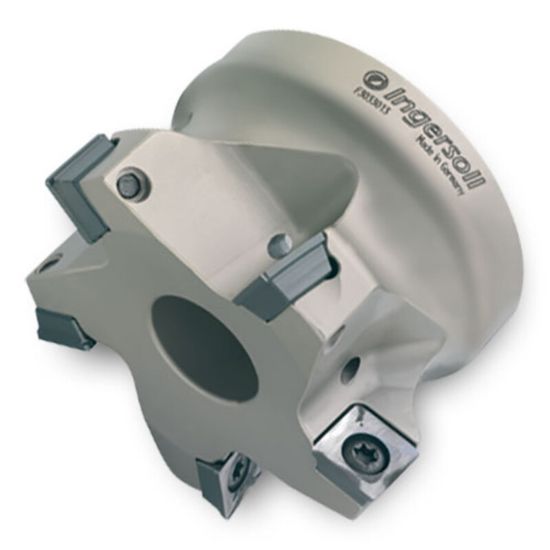

Picture of INGERSOLL 5H6G-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute 0.41 Max DOC 1.570 OAL

INGERSOLL 5H6G-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute 0.41 Max DOC 1.570 OAL

ANSI: 5H6G-20R01

ISO: 5H6G-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3022733
Delivery date: 3-5 days
$617.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Medium, Roughing, Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4100
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Insert Size Ic 11
Cutting & Machining Properties
Insert Style SH
Coolant Thru No
Max Ramp Angle 2.00°
Insert Shape/Cutter Pocket Shape Square
