  • INGERSOLL 5G6Q-50R01 Milling Cutter 5.000 Shell Arbor 1.5000 8 Flute Coolant 0.106 Max DOC 2.500 OAL

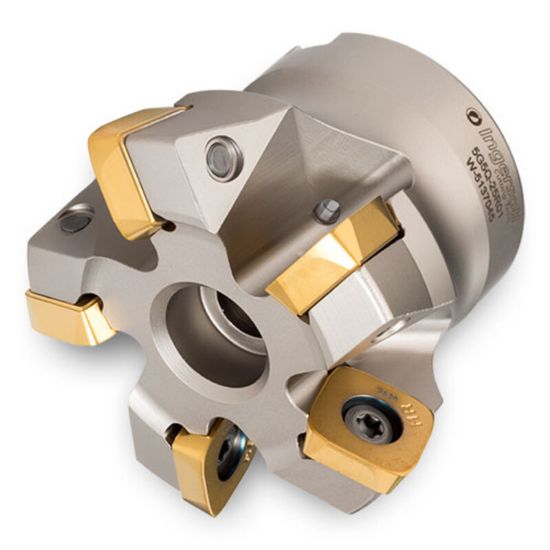

Picture of INGERSOLL 5G6Q-50R01 Milling Cutter 5.000 Shell Arbor 1.5000 8 Flute Coolant 0.106 Max DOC 2.500 OAL

INGERSOLL 5G6Q-50R01 Milling Cutter 5.000 Shell Arbor 1.5000 8 Flute Coolant 0.106 Max DOC 2.500 OAL

ANSI: 5G6Q-50R01

ISO: 5G6Q-50R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922134
Delivery date: 3-5 days
$1,129.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Insert/Tool Tool
Insert Application Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 8
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Overall Len 2.5000 63.50MM
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Cut Dia Min 4.1440 105.26MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1060
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.20°
Insert Shape/Cutter Pocket Shape Square
