  • INGERSOLL 5G6Q-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.106 Max DOC 2.500 OAL

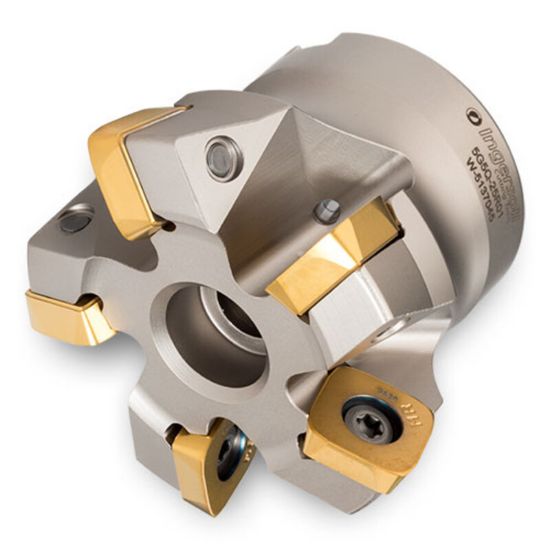

Picture of INGERSOLL 5G6Q-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.106 Max DOC 2.500 OAL

INGERSOLL 5G6Q-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.106 Max DOC 2.500 OAL

ANSI: 5G6Q-40R01

ISO: 5G6Q-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922136
Delivery date: 3-5 days
$819.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Insert Type Positive
Application Slot Milling, Ramp Milling, Copy Milling, Feed Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.1440 54.46MM
Overall Len 2.5000 63.50MM
Tool Material Steel
Cutter Dia 4.0000 101.60MM
Depth Of Cut Max 0.1060
Flutes/Inserts 6
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Max Ramp Angle 1.60°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
