  • INGERSOLL 5G6Q-30R01 Milling Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.107 Max DOC 2.000 OAL

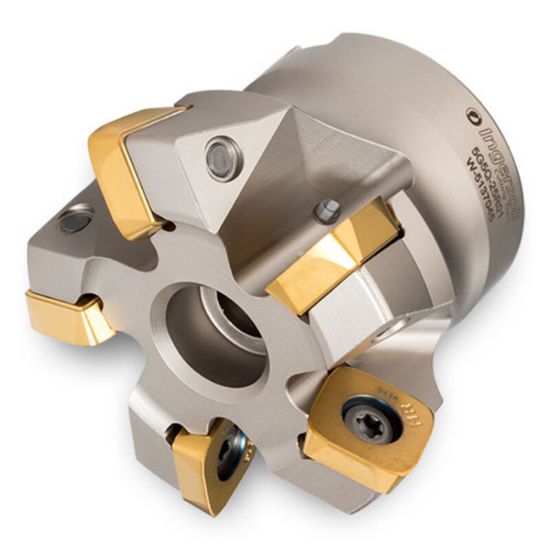

Picture of INGERSOLL 5G6Q-30R01 Milling Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.107 Max DOC 2.000 OAL

INGERSOLL 5G6Q-30R01 Milling Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.107 Max DOC 2.000 OAL

ANSI: 5G6Q-30R01

ISO: 5G6Q-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922138
Delivery date: 3-5 days
$726.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Insert Application Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.0000 76.20MM
Cut Dia Min 2.1440 54.46MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.1070
Cut Dia Max 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 2.40°
Coolant Thru Yes
