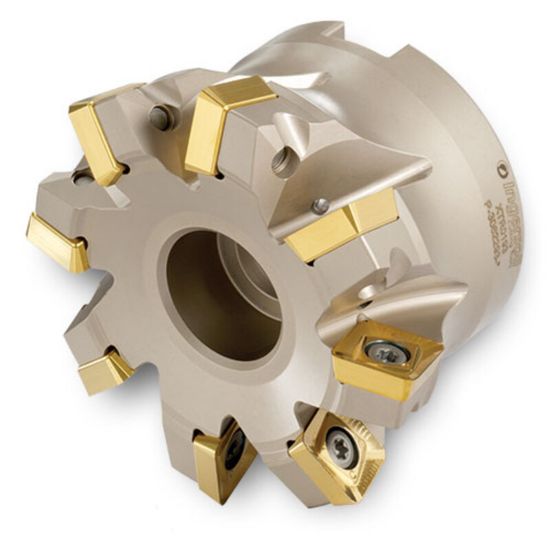

Picture of INGERSOLL 5G6M-60R01 Milling Cutter 6.000 Shell Arbor 1.5000 8 Flute 0.147 Max DOC 2.500 OAL

INGERSOLL 5G6M-60R01 Milling Cutter 6.000 Shell Arbor 1.5000 8 Flute 0.147 Max DOC 2.500 OAL

ANSI: 5G6M-60R01

ISO: 5G6M-60R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3005920
Delivery date: 3-5 days
$1,325.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Insert/Tool Tool
Package Size 1
Insert Application Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 8
Cut Dia Max 6.0000 152.40MM
Overall Len 2.5000 63.50MM
Depth Of Cut Max 0.1470
Tool Material Steel
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.7550 120.78MM
Cutting & Machining Properties
Max Ramp Angle 0.40°
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
