  • INGERSOLL 5G5M-50R01 Milling Cutter 5.000 Shell Arbor 1.5000 9 Flute Coolant 0.147 Max DOC 2.500 OAL

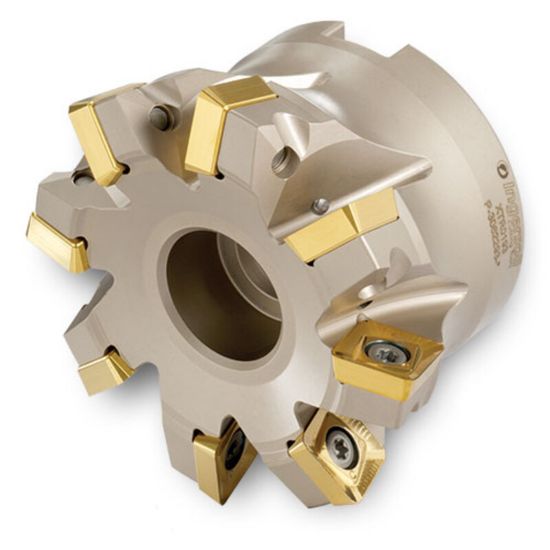

Picture of INGERSOLL 5G5M-50R01 Milling Cutter 5.000 Shell Arbor 1.5000 9 Flute Coolant 0.147 Max DOC 2.500 OAL

INGERSOLL 5G5M-50R01 Milling Cutter 5.000 Shell Arbor 1.5000 9 Flute Coolant 0.147 Max DOC 2.500 OAL

ANSI: 5G5M-50R01

ISO: 5G5M-50R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3006134
Delivery date: 3-5 days
$1,241.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Insert/Tool Tool
Package Size 1
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.5000 63.50MM
Depth Of Cut Max 0.1470
Flutes/Inserts 9
Cut Dia Min 3.7590 95.48MM
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 0.60°
