  • INGERSOLL 5C4M-10L01 Milling Cutter 60.0° 10.00 Shell Arbor 2.5000 12 Flute 0.484 Max DOC 2.375 OAL

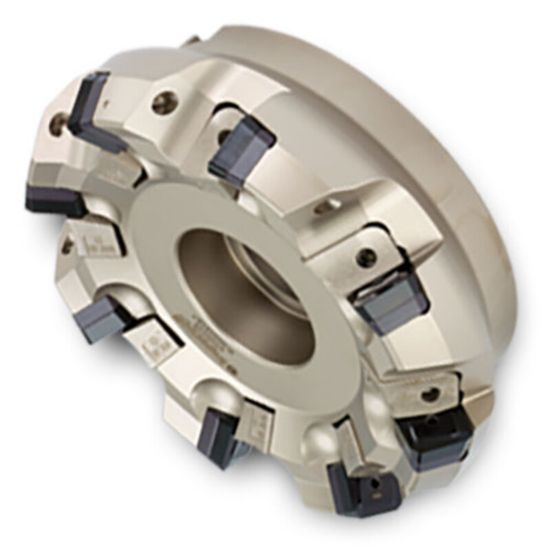

Picture of INGERSOLL 5C4M-10L01 Milling Cutter 60.0° 10.00 Shell Arbor 2.5000 12 Flute 0.484 Max DOC 2.375 OAL

INGERSOLL 5C4M-10L01 Milling Cutter 60.0° 10.00 Shell Arbor 2.5000 12 Flute 0.484 Max DOC 2.375 OAL

ANSI: 5C4M-10L01

ISO: 5C4M-10L01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2919296
Delivery date: 3-5 days
$2,296.00
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Face Milling
Dimensional Specifications
Overall Len 2.3750 60.33MM
Depth Of Cut Max 0.4840
Cut Dia Min 10.0000 254.00MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 20
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Flutes/Inserts 12
Cutter Dia 10.0000 254.00MM
Cut Dia Max 10.6600 270.76MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Insert Style SE
