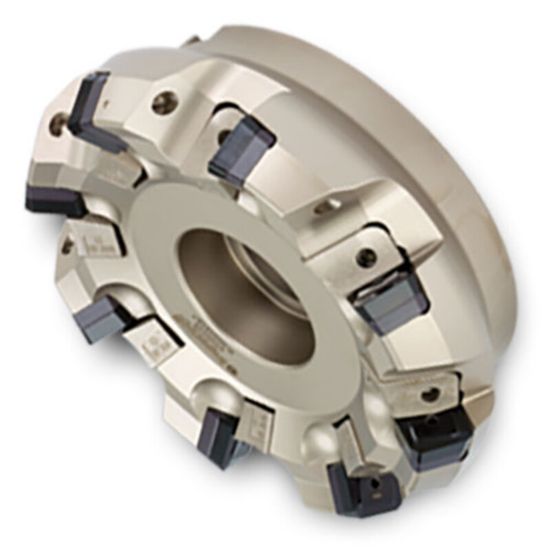

Picture of INGERSOLL 5C2M-14R02 Milling Cutter 60.0° 14.00 Shell Arbor 2.5000 16 Flute 0.51 Max DOC 2.375 OAL

INGERSOLL 5C2M-14R02 Milling Cutter 60.0° 14.00 Shell Arbor 2.5000 16 Flute 0.51 Max DOC 2.375 OAL

ANSI: 5C2M-14R02

ISO: 5C2M-14R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2908435
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Insert Size Ic 20
Tool Material Steel
Flutes/Inserts 16
Machine Side Connection Size 2.5000 63.50MM
Overall Len 2.3750 60.33MM
Cutter Dia 14.0000 355.60MM
Depth Of Cut Max 0.5100
Cut Dia Min 14.0000 355.60MM
Cut Dia Max 14.6700 372.62MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style SP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
