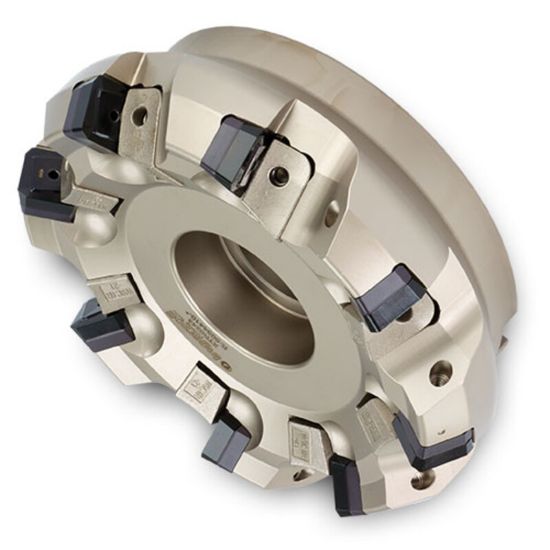

Picture of INGERSOLL 5C2M-08L01 Milling Cutter 60.0° 8.000 Shell Arbor 2.5000 8 Flute 0.51 Max DOC 2.375 OAL

INGERSOLL 5C2M-08L01 Milling Cutter 60.0° 8.000 Shell Arbor 2.5000 8 Flute 0.51 Max DOC 2.375 OAL

ANSI: 5C2M-08L01

ISO: 5C2M-08L01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910692
Delivery date: 3-5 days
$1,829.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Shipping State Illinois
Insert/Tool Tool
Application Face Milling
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 8.0000 203.20MM
Cut Dia Max 8.6700 220.22MM
Depth Of Cut Max 0.5100
Insert Size Ic 20
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cut Dia Min 8.0000 203.20MM
Flutes/Inserts 8
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.3750 60.33MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Coolant Thru No
