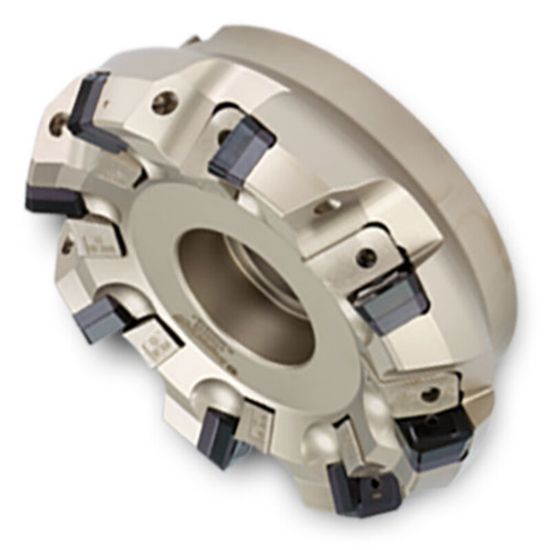

Picture of INGERSOLL 5C2M-06R02 Milling Cutter 60.0° 6.000 Shell Arbor 1.5000 8 Flute 0.51 Max DOC 2.375 OAL

INGERSOLL 5C2M-06R02 Milling Cutter 60.0° 6.000 Shell Arbor 1.5000 8 Flute 0.51 Max DOC 2.375 OAL

ANSI: 5C2M-06R02

ISO: 5C2M-06R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2908415
Delivery date: 3-5 days
$1,521.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 20
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 6.0000 152.40MM
Overall Len 2.3750 60.33MM
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.5100
Cut Dia Max 6.6700 169.42MM
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style SP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
