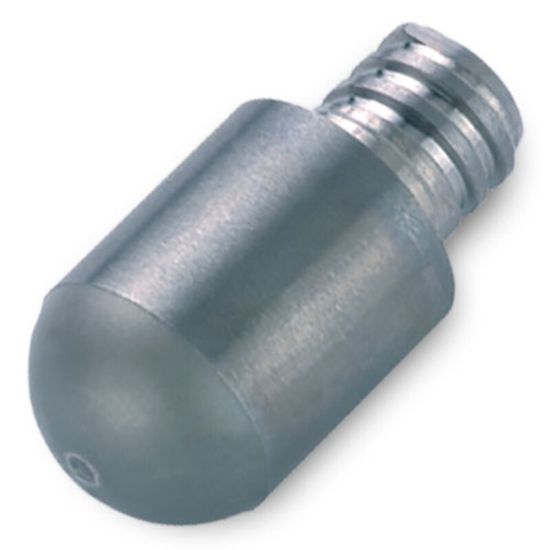

INGERSOLL 4RB16000TR-S210 IN05S DIA 16MM SH T10 Replacable Head Carbide Single End CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5840669
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dovetail Milling, Face Milling, Copy Milling, Feed Milling, Side Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Package Size 2
Dimensional Specifications
Cutter Dia 0.6299 16.00MM
Machine Side Connection Size T10
Single/Double End Single End
Tool Material Carbide
Shank/Pilot Dia T10
Inch/Metric Inch
Length Type Standard
Cutter Style Screw On Blanks
Machine Side Connection Type Screw On
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Job Shop Yes
