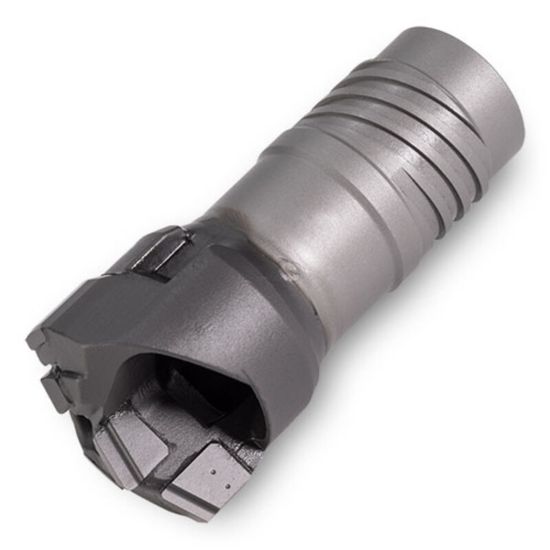

INGERSOLL 4835615 2 BTA Brazed|Single tube system|External 4-start thread|.496-2.559" (12.6-65.0 mm)|

ISO: 4835615

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4835615
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Gun Drilling, Deep Hole Drilling
Grade TB333
Made In USA No
Dimensional Specifications
Flutes/Inserts 1
Cutter Dia 2.0000 50.80MM
Overall Len 2.9500 74.93MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 2.0000 50.80MM
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Connection BTSI043
Coolant Thru Yes
Industry-Specific Applications
Mold Yes
