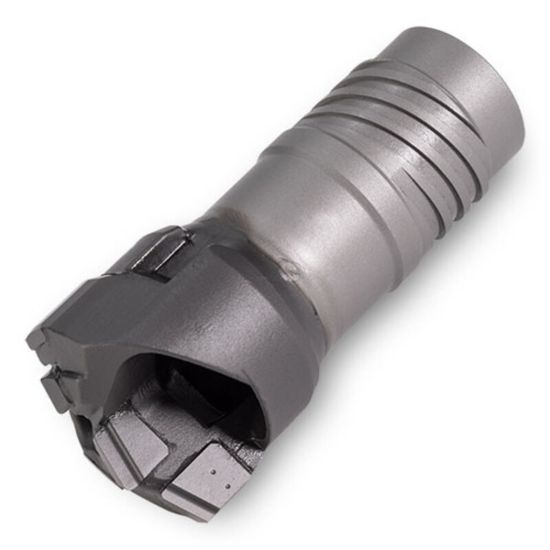

INGERSOLL 4835202 0.593 BTA Brazed|Single tube system|External 4-start thread|.496-2.559" (12.6-65.0 mm)|

ISO: 4835202

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4835202
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Made In USA No
Package Size 1
Application Gun Drilling, Deep Hole Drilling
Grade TB204
Dimensional Specifications
Overall Len 1.6900 42.93MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 1
Cutter Dia 0.5938 15.08MM - 19/32
Tool Material Carbide
Cut Dia Min 0.5938 15.08MM - 19/32
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Connection BTSI013
Industry-Specific Applications
Mold Yes
