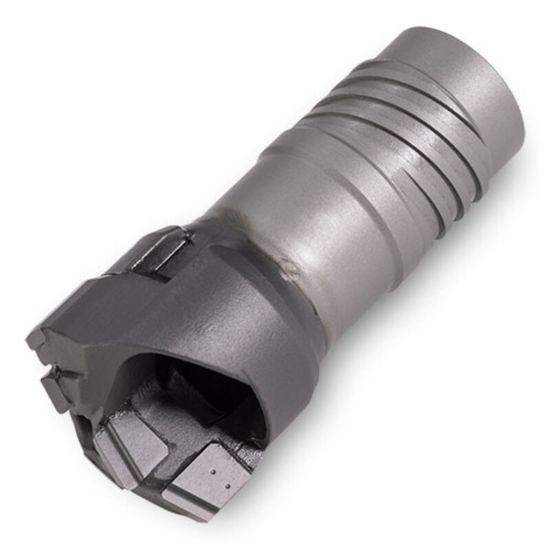

INGERSOLL 4816487 0.758 BTA Brazed|Single tube system|External 4-start thread|.496-2.559" (12.6-65.0 mm)|

ISO: 4816487

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4816487
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Gun Drilling, Deep Hole Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Grade TB203
Dimensional Specifications
Overall Len 1.8500 46.99MM
Flutes/Inserts 1
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Cutter Dia 0.7587 19.27MM
Cut Dia Min 0.7587 19.27MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Connection BTSI017
Coolant Thru Yes
Industry-Specific Applications
Mold Yes
