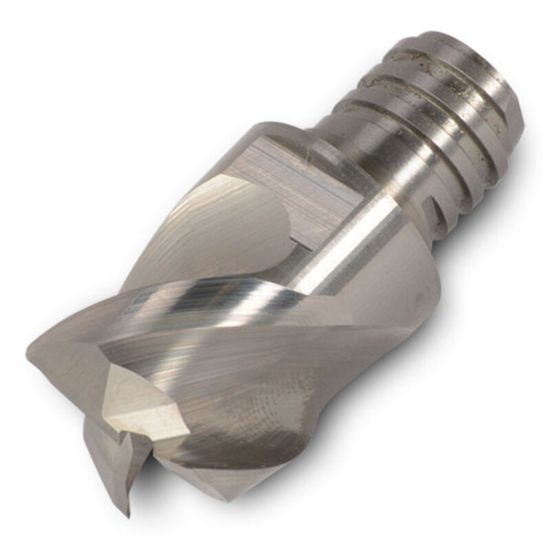

INGERSOLL 46D-6239TRRD06-P IN05S DIA 5/8 SH T10 LOC 0.6250End Mill,Replacable Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0620 1.57MM CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5812675
Delivery date: 3-5 days
$101.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 2
Application Side Milling, Profile Milling, Slot Milling
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size T10
Cutter Style Screw On Corner Radius End Mill
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle 30°
Corner Radius 0.0620 1.57MM
Length Of Cut 0.6250 15.88MM
Length Type Standard
Machine Side Connection Type Screw On
Flutes/Inserts 3
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Medical Yes
