  • INGERSOLL 2XJ3J-20027D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.971 Max DOC 2.750 OAL

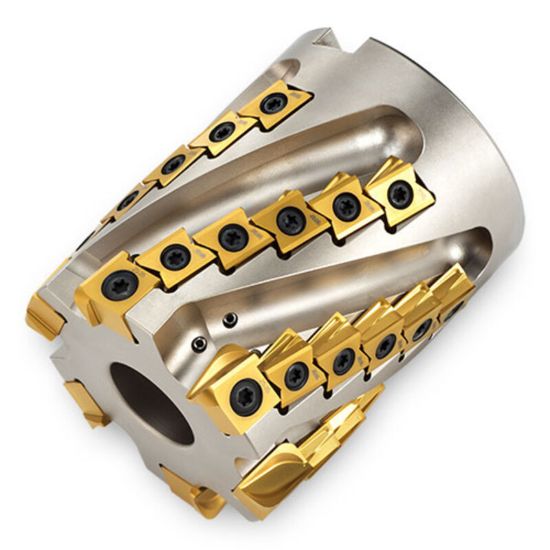

Picture of INGERSOLL 2XJ3J-20027D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.971 Max DOC 2.750 OAL

INGERSOLL 2XJ3J-20027D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.971 Max DOC 2.750 OAL

ANSI: 2XJ3J-20027D1R01

ISO: 2XJ3J-20027D1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2923692
Delivery date: 3-5 days
$1,269.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Illinois
Application Side Milling, Long Edge Milling
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Overall Len 2.7500 69.85MM
Insert Size Ic 42, 32
Depth Of Cut Max 1.9710
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru Yes
Insert Style IP
Insert Shape/Cutter Pocket Shape Other
