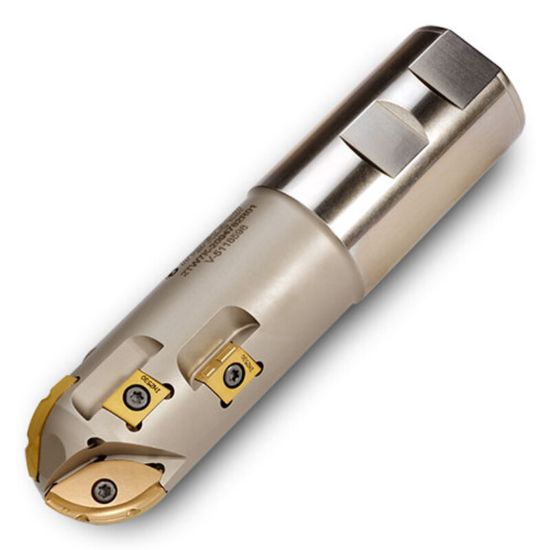

Picture of INGERSOLL 2TW7K-1203781R01 Milling Cutter 1.250 Weldon 1.2500 3 Flute Coolant 1.5 Max DOC 6.000 OAL

INGERSOLL 2TW7K-1203781R01 Milling Cutter 1.250 Weldon 1.2500 3 Flute Coolant 1.5 Max DOC 6.000 OAL

ANSI: 2TW7K-1203781R01

ISO: 2TW7K-1203781R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910433
Delivery date: 3-5 days
$629.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Depth Of Cut Max 1.5000
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.0000 152.40MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Insert Style DC,NC
