  • INGERSOLL 2SJ3F-20027D2R10 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 2.29 Max DOC 2.750 OAL

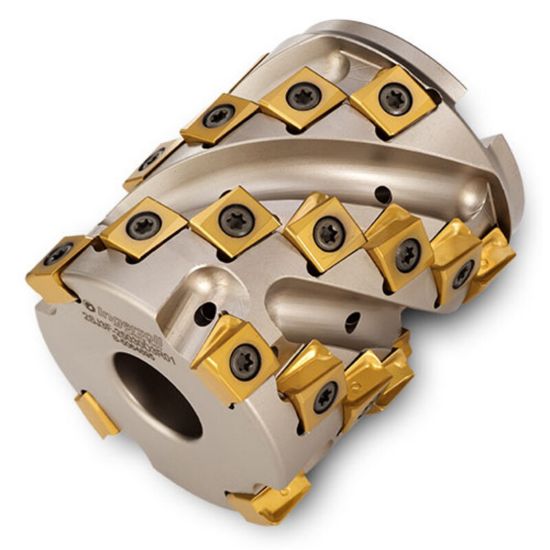

Picture of INGERSOLL 2SJ3F-20027D2R10 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 2.29 Max DOC 2.750 OAL

INGERSOLL 2SJ3F-20027D2R10 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 3 Flute Coolant 2.29 Max DOC 2.750 OAL

ANSI: 2SJ3F-20027D2R10

ISO: 2SJ3F-20027D2R10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030732
Delivery date: 3-5 days
$1,474.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 2.2900
Cut Dia Min 2.0000 50.80MM
Overall Len 2.7500 69.85MM
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 21
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style DG
Insert Shape/Cutter Pocket Shape Rectagonal
