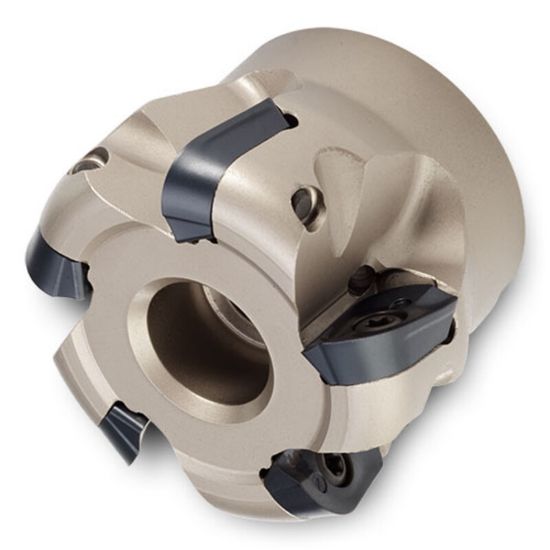

Picture of INGERSOLL 2J4E-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 8 Flute 0.63 Max DOC 2.000 OAL

INGERSOLL 2J4E-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 8 Flute 0.63 Max DOC 2.000 OAL

ANSI: 2J4E-40R02

ISO: 2J4E-40R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018981
Delivery date: 3-5 days
$961.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing, Finishing
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 8
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 18
Depth Of Cut Max 0.6300
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.0000 101.60MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
Insert Style AO
Max Ramp Angle 1.20°
