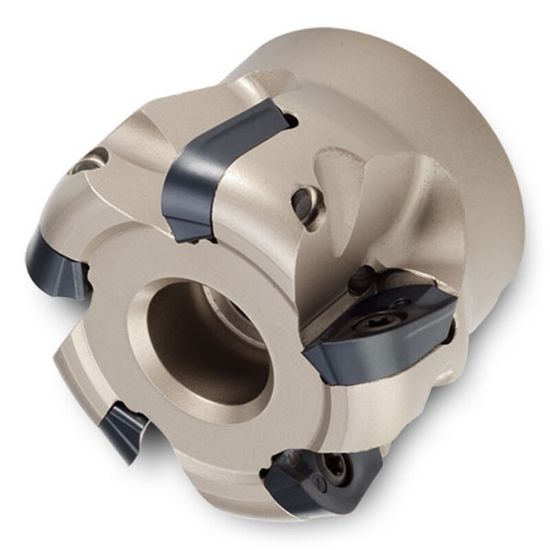

Picture of INGERSOLL 2J4E-30R02 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute 0.63 Max DOC 1.750 OAL

INGERSOLL 2J4E-30R02 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute 0.63 Max DOC 1.750 OAL

ANSI: 2J4E-30R02

ISO: 2J4E-30R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018980
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.6300
Flutes/Inserts 7
Insert Size Ic 18
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 1.80°
Coolant Thru No
