  • INGERSOLL 2J1X-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 6 Flute Coolant 0.5 Max DOC 1.570 OAL

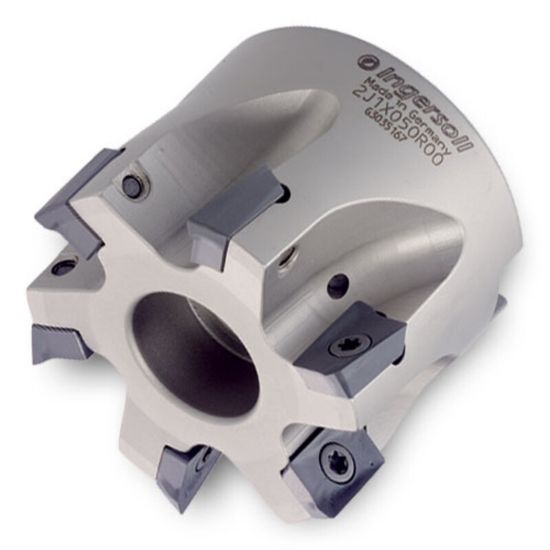

Picture of INGERSOLL 2J1X-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 6 Flute Coolant 0.5 Max DOC 1.570 OAL

INGERSOLL 2J1X-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 6 Flute Coolant 0.5 Max DOC 1.570 OAL

ANSI: 2J1X-20R02

ISO: 2J1X-20R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024842
Delivery date: 3-5 days
$527.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.5000
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 2.80°
