  • INGERSOLL 2J1R080R00 Milling Cutter 90.0° 3.150 Shell Arbor 0.6300 9 Flute Coolant 0.4724 Max DOC 1.968 OAL

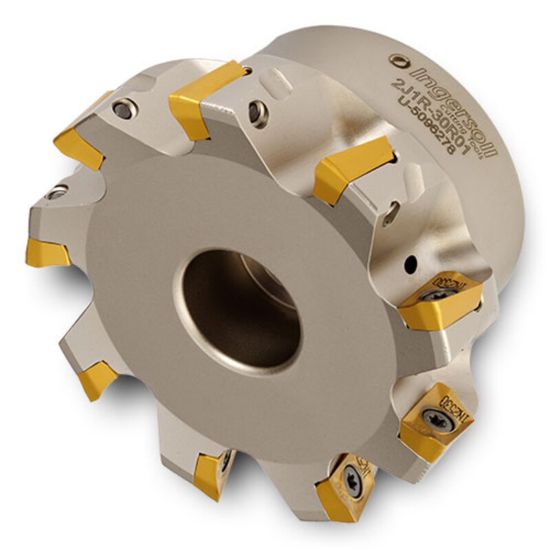

Picture of INGERSOLL 2J1R080R00 Milling Cutter 90.0° 3.150 Shell Arbor 0.6300 9 Flute Coolant 0.4724 Max DOC 1.968 OAL

INGERSOLL 2J1R080R00 Milling Cutter 90.0° 3.150 Shell Arbor 0.6300 9 Flute Coolant 0.4724 Max DOC 1.968 OAL

ANSI: 2J1R080R00

ISO: 2J1R080R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3074953
Delivery date: 3-5 days
$1,008.00
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Flutes/Inserts 9
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 13
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.4724
Tool Material Steel
Overall Len 1.9685 50.00MM
Cutting & Machining Properties
Max Ramp Angle 1.00°
Coolant Thru Yes
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
