  • INGERSOLL 2J1R066R00 Milling Cutter 90.0° 2.598 Shell Arbor 0.6300 6 Flute Coolant 0.4724 Max DOC 1.968 OAL

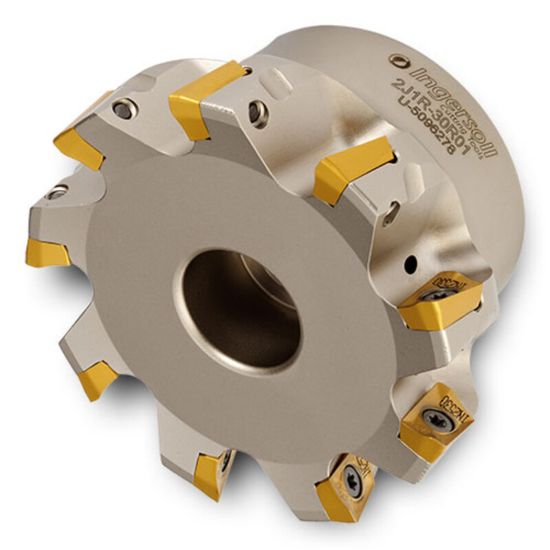

Picture of INGERSOLL 2J1R066R00 Milling Cutter 90.0° 2.598 Shell Arbor 0.6300 6 Flute Coolant 0.4724 Max DOC 1.968 OAL

INGERSOLL 2J1R066R00 Milling Cutter 90.0° 2.598 Shell Arbor 0.6300 6 Flute Coolant 0.4724 Max DOC 1.968 OAL

ANSI: 2J1R066R00

ISO: 2J1R066R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3074952
Delivery date: 3-5 days
$783.07
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 13
Depth Of Cut Max 0.4724
Tool Material Steel
Cutter Dia 2.5980 65.99MM
Cut Dia Min 2.5980 65.99MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 6
Machine Side Connection Size 0.6299 16.00MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.20°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
