  • INGERSOLL 2J1R063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 7 Flute Coolant 0.4724 Max DOC 1.574 OAL

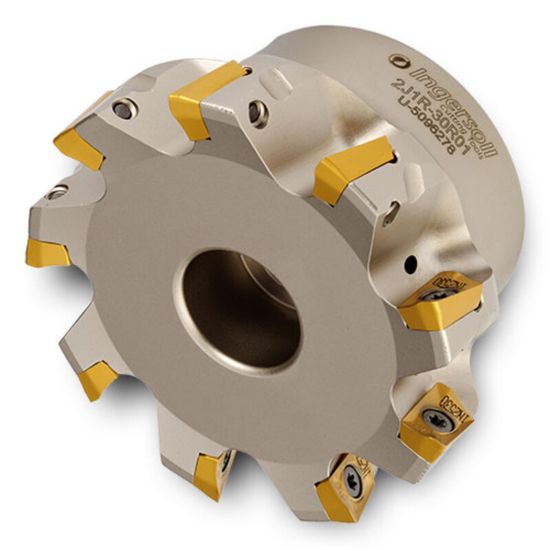

Picture of INGERSOLL 2J1R063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 7 Flute Coolant 0.4724 Max DOC 1.574 OAL

INGERSOLL 2J1R063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 7 Flute Coolant 0.4724 Max DOC 1.574 OAL

ANSI: 2J1R063R00

ISO: 2J1R063R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3074951
Delivery date: 3-5 days
$817.60
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Cut Dia Min 2.4800 62.99MM
Insert Size Ic 13
Cutter Dia 2.4800 62.99MM
Flutes/Inserts 7
Depth Of Cut Max 0.4724
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.5748 40.00MM
Cutting & Machining Properties
Max Ramp Angle 1.40°
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style BO
