  • INGERSOLL 2J1R052R00 Milling Cutter 90.0° 2.047 Shell Arbor 0.8661 5 Flute Coolant 0.4724 Max DOC 1.968 OAL

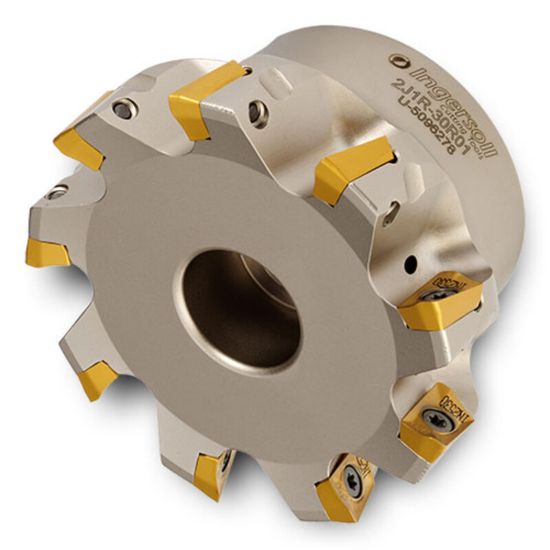

Picture of INGERSOLL 2J1R052R00 Milling Cutter 90.0° 2.047 Shell Arbor 0.8661 5 Flute Coolant 0.4724 Max DOC 1.968 OAL

INGERSOLL 2J1R052R00 Milling Cutter 90.0° 2.047 Shell Arbor 0.8661 5 Flute Coolant 0.4724 Max DOC 1.968 OAL

ANSI: 2J1R052R00

ISO: 2J1R052R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3074950
Delivery date: 3-5 days
$665.47
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Cutter Dia 2.0470 51.99MM
Depth Of Cut Max 0.4724
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 13
Cut Dia Min 2.0470 51.99MM
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.9685 50.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style BO
Max Ramp Angle 2.00°
