  • INGERSOLL 2J1R050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 6 Flute Coolant 0.4724 Max DOC 1.574 OAL

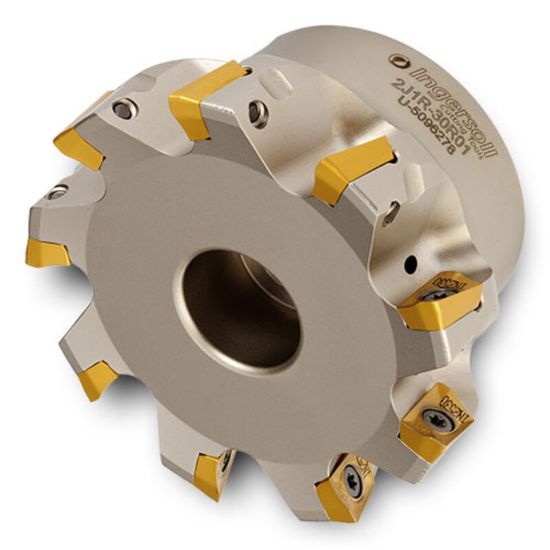

Picture of INGERSOLL 2J1R050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 6 Flute Coolant 0.4724 Max DOC 1.574 OAL

INGERSOLL 2J1R050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 6 Flute Coolant 0.4724 Max DOC 1.574 OAL

ANSI: 2J1R050R00

ISO: 2J1R050R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3074949
Delivery date: 3-5 days
$679.47
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 6
Insert Size Ic 13
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Depth Of Cut Max 0.4724
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Max Ramp Angle 2.10°
Coolant Thru Yes
