  • INGERSOLL 2J1R040R03 Milling Cutter 90.0° 1.575 Shell Arbor 0.8661 4 Flute Coolant 0.4724 Max DOC 1.574 OAL

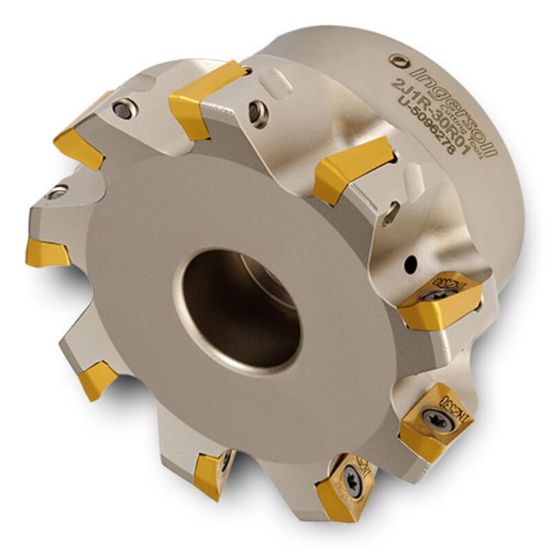

Picture of INGERSOLL 2J1R040R03 Milling Cutter 90.0° 1.575 Shell Arbor 0.8661 4 Flute Coolant 0.4724 Max DOC 1.574 OAL

INGERSOLL 2J1R040R03 Milling Cutter 90.0° 1.575 Shell Arbor 0.8661 4 Flute Coolant 0.4724 Max DOC 1.574 OAL

ANSI: 2J1R040R03

ISO: 2J1R040R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057578
Delivery date: 3-5 days
$572.13
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Insert Size Ic 13
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Depth Of Cut Max 0.4724
Cut Dia Min 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style BO
Max Ramp Angle 3.20°
