  • INGERSOLL 2J1R-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 9 Flute Coolant 0.47 Max DOC 1.750 OAL

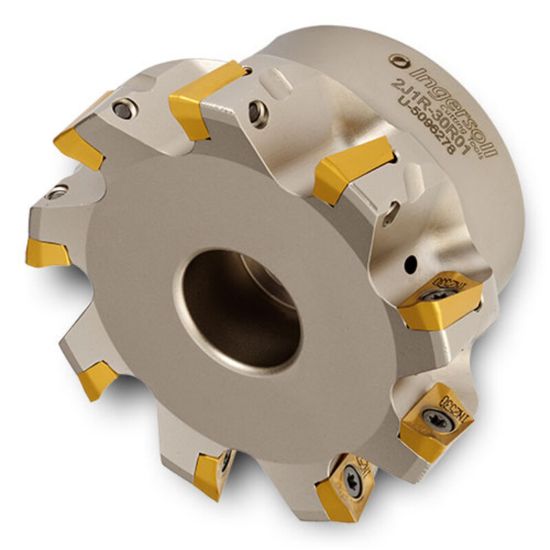

Picture of INGERSOLL 2J1R-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 9 Flute Coolant 0.47 Max DOC 1.750 OAL

INGERSOLL 2J1R-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 9 Flute Coolant 0.47 Max DOC 1.750 OAL

ANSI: 2J1R-30R01

ISO: 2J1R-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916676
Delivery date: 3-5 days
$942.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Depth Of Cut Max 0.4700
Overall Len 1.7500 44.45MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 9
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 13
Cutting & Machining Properties
Max Ramp Angle 0.90°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Coolant Thru Yes
