  • INGERSOLL 2J1R-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.47 Max DOC 1.570 OAL

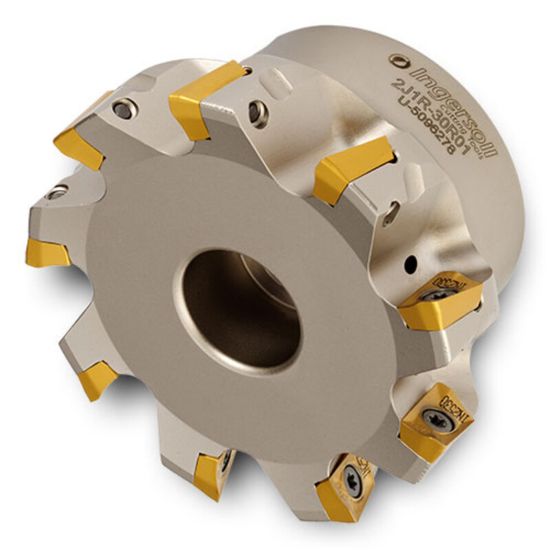

Picture of INGERSOLL 2J1R-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.47 Max DOC 1.570 OAL

INGERSOLL 2J1R-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.47 Max DOC 1.570 OAL

ANSI: 2J1R-20R01

ISO: 2J1R-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916673
Delivery date: 3-5 days
$640.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 13
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.4700
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 1.50°
Insert Style BO
