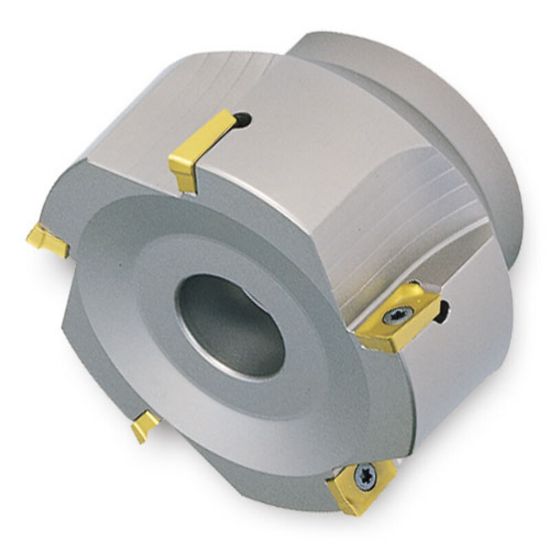

Picture of INGERSOLL 2J1Q-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 6 Flute 0.47 Max DOC 1.570 OAL

INGERSOLL 2J1Q-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 6 Flute 0.47 Max DOC 1.570 OAL

ANSI: 2J1Q-20R02

ISO: 2J1Q-20R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3003339
Delivery date: 3-5 days
$498.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.4700
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Cut Dia Min 2.0000 50.80MM
Insert Size Ic 12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Coolant Thru No
