  • INGERSOLL 2J1P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 8 Flute Coolant 0.3543 Max DOC 1.574 OAL

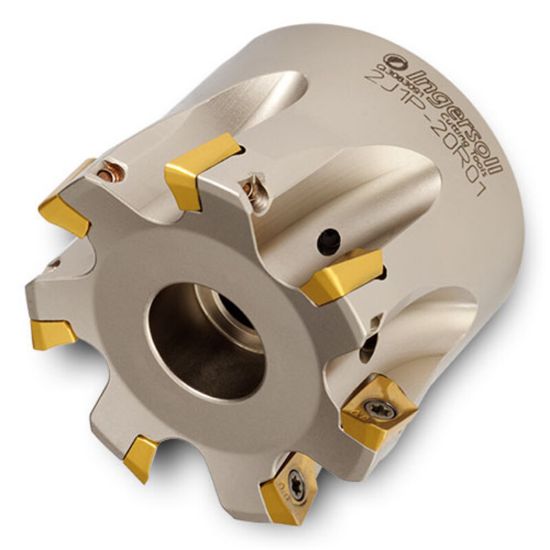

Picture of INGERSOLL 2J1P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 8 Flute Coolant 0.3543 Max DOC 1.574 OAL

INGERSOLL 2J1P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 8 Flute Coolant 0.3543 Max DOC 1.574 OAL

ANSI: 2J1P063R00

ISO: 2J1P063R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027509
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 8
Insert Size Ic 9
Depth Of Cut Max 0.3543
Cut Dia Min 2.4800 62.99MM
Tool Material Steel
Cutter Dia 2.4800 62.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.5748 40.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 1.00°
Coolant Thru Yes
Insert Style BO
