  • INGERSOLL 2J1P050R01 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.3543 Max DOC 1.574 OAL

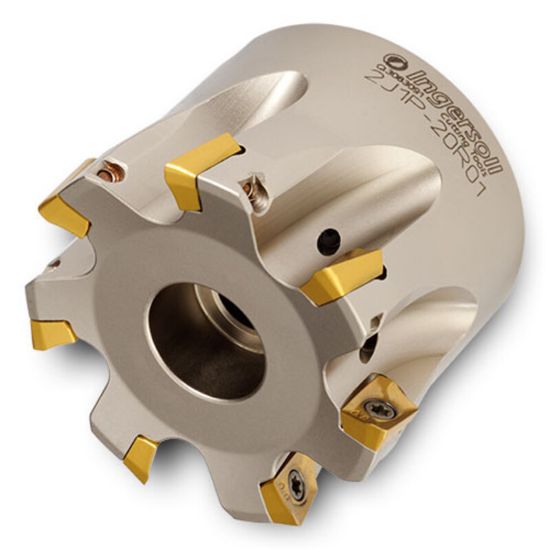

Picture of INGERSOLL 2J1P050R01 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.3543 Max DOC 1.574 OAL

INGERSOLL 2J1P050R01 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.3543 Max DOC 1.574 OAL

ANSI: 2J1P050R01

ISO: 2J1P050R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057575
Delivery date: 3-5 days
$620.67
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Depth Of Cut Max 0.3543
Cut Dia Min 1.9690 50.01MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Insert Size Ic 9
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Max Ramp Angle 1.30°
Coolant Thru Yes
