  • INGERSOLL 2J1P050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 7 Flute Coolant 0.3543 Max DOC 1.574 OAL

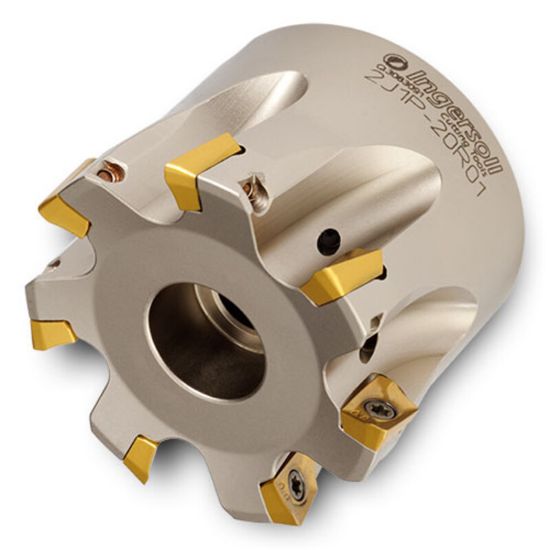

Picture of INGERSOLL 2J1P050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 7 Flute Coolant 0.3543 Max DOC 1.574 OAL

INGERSOLL 2J1P050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 7 Flute Coolant 0.3543 Max DOC 1.574 OAL

ANSI: 2J1P050R00

ISO: 2J1P050R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027508
Delivery date: 3-5 days
$658.00
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 9
Flutes/Inserts 7
Cut Dia Min 1.9690 50.01MM
Machine Side Connection Size 0.8661 22.00MM
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.5748 40.00MM
Tool Material Steel
Depth Of Cut Max 0.3543
Cutting & Machining Properties
Insert Style BO
Coolant Thru Yes
Max Ramp Angle 1.30°
Insert Shape/Cutter Pocket Shape Parallelogram
