  • INGERSOLL 2J1P035R00 Milling Cutter 90.0° 1.378 Shell Arbor 0.6300 6 Flute Coolant 0.3543 Max DOC 1.259 OAL

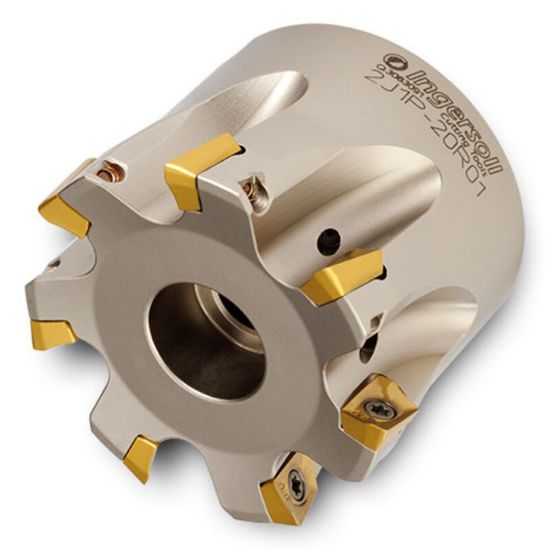

Picture of INGERSOLL 2J1P035R00 Milling Cutter 90.0° 1.378 Shell Arbor 0.6300 6 Flute Coolant 0.3543 Max DOC 1.259 OAL

INGERSOLL 2J1P035R00 Milling Cutter 90.0° 1.378 Shell Arbor 0.6300 6 Flute Coolant 0.3543 Max DOC 1.259 OAL

ANSI: 2J1P035R00

ISO: 2J1P035R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5878719
Delivery date: 3-5 days
$596.40
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Shipping State Illinois
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3543
Flutes/Inserts 6
Cutter Dia 1.3780 35.00MM
Tool Material Steel
Machine Side Connection Size 0.6299 16.00MM
Overall Len 1.2600 32.00MM
Cut Dia Min 1.3780 35.00MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 9
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 2.50°
Insert Style BO
Coolant Thru Yes
