  • INGERSOLL 2J1P032R00 Milling Cutter 90.0° 1.260 Shell Arbor 0.6300 5 Flute Coolant 0.3543 Max DOC 1.259 OAL

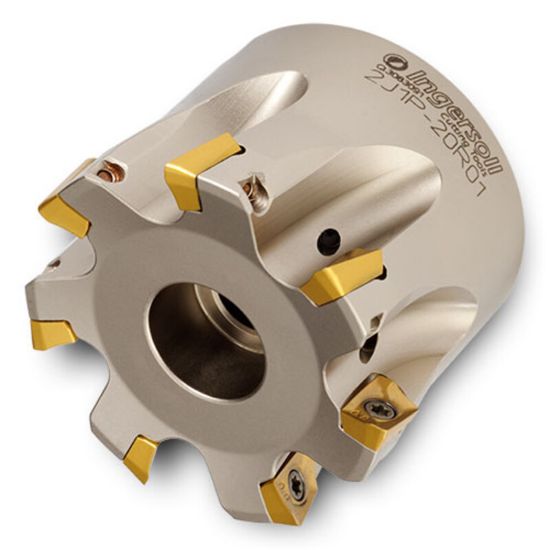

Picture of INGERSOLL 2J1P032R00 Milling Cutter 90.0° 1.260 Shell Arbor 0.6300 5 Flute Coolant 0.3543 Max DOC 1.259 OAL

INGERSOLL 2J1P032R00 Milling Cutter 90.0° 1.260 Shell Arbor 0.6300 5 Flute Coolant 0.3543 Max DOC 1.259 OAL

ANSI: 2J1P032R00

ISO: 2J1P032R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027506
Delivery date: 3-5 days
$528.27
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Slot Milling, Face Milling
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3543
Cutter Dia 1.2600 32.00MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.6299 16.00MM
Overall Len 1.2600 32.00MM
Cut Dia Min 1.2600 32.00MM
Insert Size Ic 9
Flutes/Inserts 5
Cutting & Machining Properties
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 2.80°
Coolant Thru Yes
