  • INGERSOLL 2J1G160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 8 Flute 0.6299 Max DOC 2.480 OAL

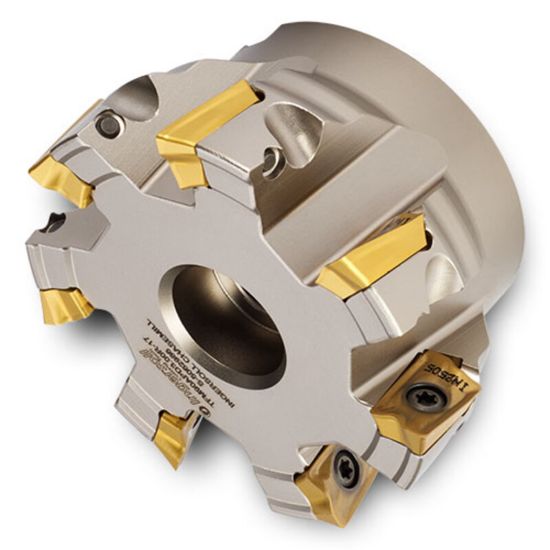

Picture of INGERSOLL 2J1G160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 8 Flute 0.6299 Max DOC 2.480 OAL

INGERSOLL 2J1G160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 8 Flute 0.6299 Max DOC 2.480 OAL

ANSI: 2J1G160R00

ISO: 2J1G160R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027850
Delivery date: 3-5 days
$1,306.67
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 17
Tool Material Steel
Cut Dia Min 6.2990 159.99MM
Depth Of Cut Max 0.6299
Flutes/Inserts 8
Cutter Dia 6.2990 159.99MM
Machine Side Connection Size 1.5748 40.00MM
Overall Len 2.4803 63.00MM
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 0.70°
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
