  • INGERSOLL 2J1G063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 5 Flute Coolant 0.6299 Max DOC 1.574 OAL

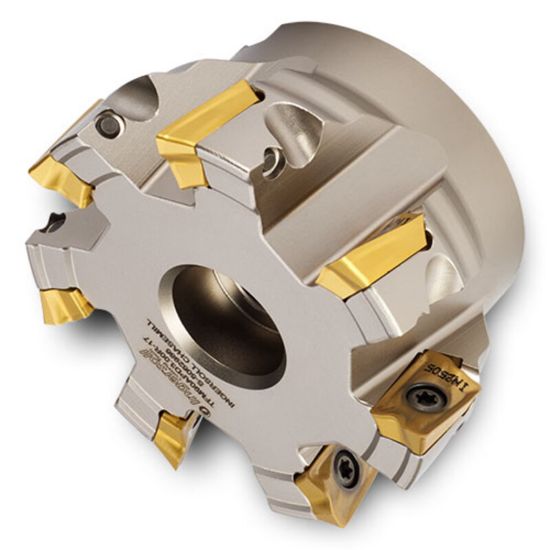

Picture of INGERSOLL 2J1G063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 5 Flute Coolant 0.6299 Max DOC 1.574 OAL

INGERSOLL 2J1G063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 5 Flute Coolant 0.6299 Max DOC 1.574 OAL

ANSI: 2J1G063R00

ISO: 2J1G063R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027843
Delivery date: 3-5 days
$577.73
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 2.4800 62.99MM
Insert Size Ic 17
Depth Of Cut Max 0.6299
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.5748 40.00MM
Cutting & Machining Properties
Max Ramp Angle 3.20°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
